FORD RANGER XL, XLS, XLT, & Sport models

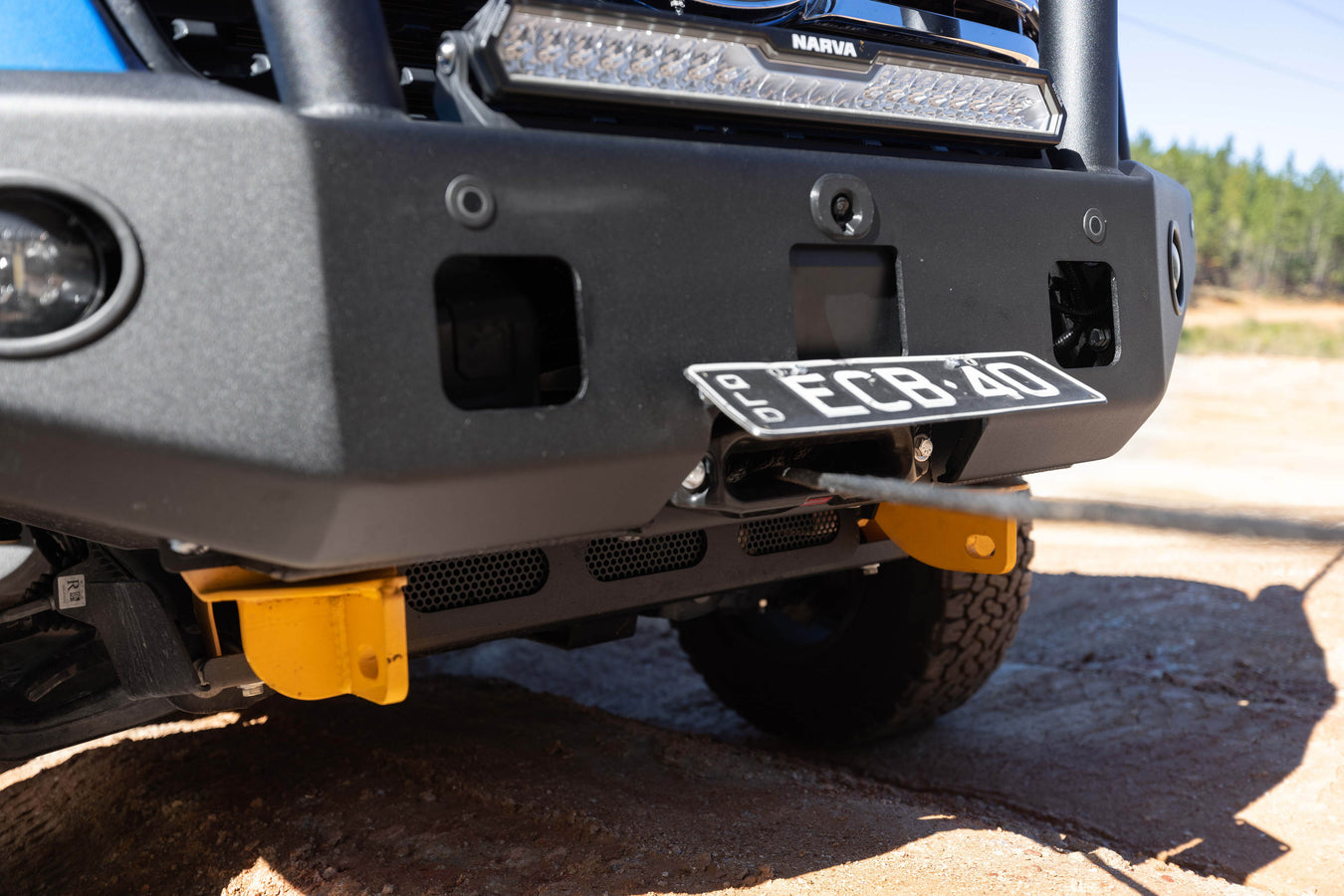

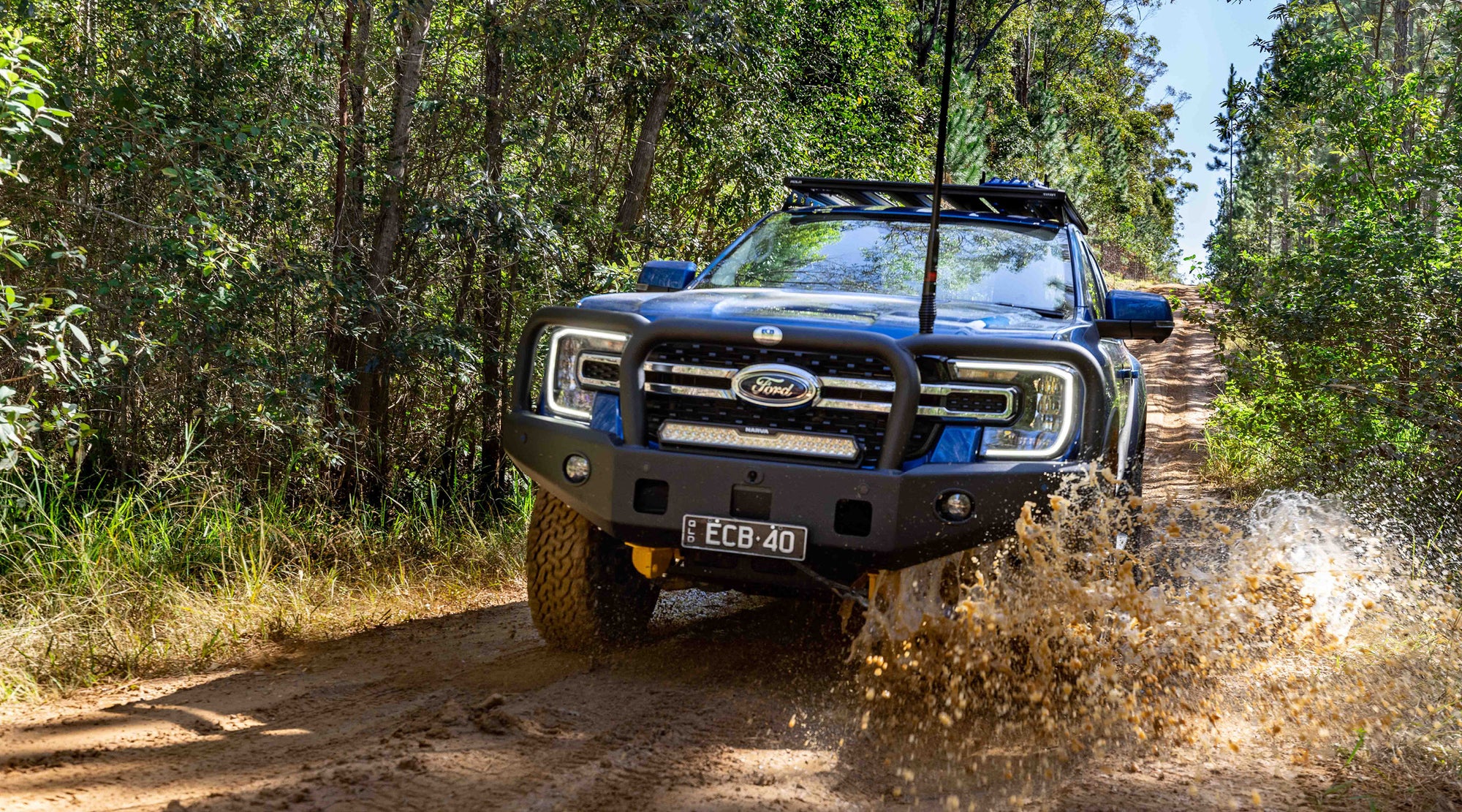

Impact protection is just one of the benefits of this eye-catching Triple Hoop Winch Bar. The vehicle’s front parking sensors and Adaptive Cruise Control Sonar are relocated into the Winch Bar channel so you can still retain full functionality of these important safety feature. This Winch Bar includes a specifically designed steel winch mounting system that allows the addition of up to a 11,500 LB low mount winch and incorporates 2 Rated Recovery Points. The Winch Bar can accommodate the Rangers 6 parking sensors and utilises OEM fog lights.

Built tough for Australia, our products are designed with functionality in mind and manufactured right here to withstand the harshest conditions.

WHY CHOOSE ECB ALLOY FRONTAL PROTECTION

Alloy Bullbars are made from a lighter weight material than your more traditional steel Bullbar. A lighter Bullbar will reduce the load on your vehicle’s suspension, steering components and chassis. Safety is at the forefront of all ECB products with our engineering and design teams focused on incorporating all the safety features of modern vehicles into our products. All ECB products are ADR compliant and have been tested for Airbag Compatibility.


Made to last, Alloy is naturally resistant to rust and corrosion making them ideal for offroad conditions. With conservative styling and available in either a polished or powdercoated finish you can select a Bullbar that will complement the styling of the vehicle and accessories you choose to fit. Whether that is playing off a chrome grille and mirrors or a more modern fully blacked out accent pack.

AUSTRALIAN MADE

AUSTRALIAN MADE

Established in 1971, ECB utilises over 50 years of experience designing, engineering and manufacturing products in Australia for Australian conditions.

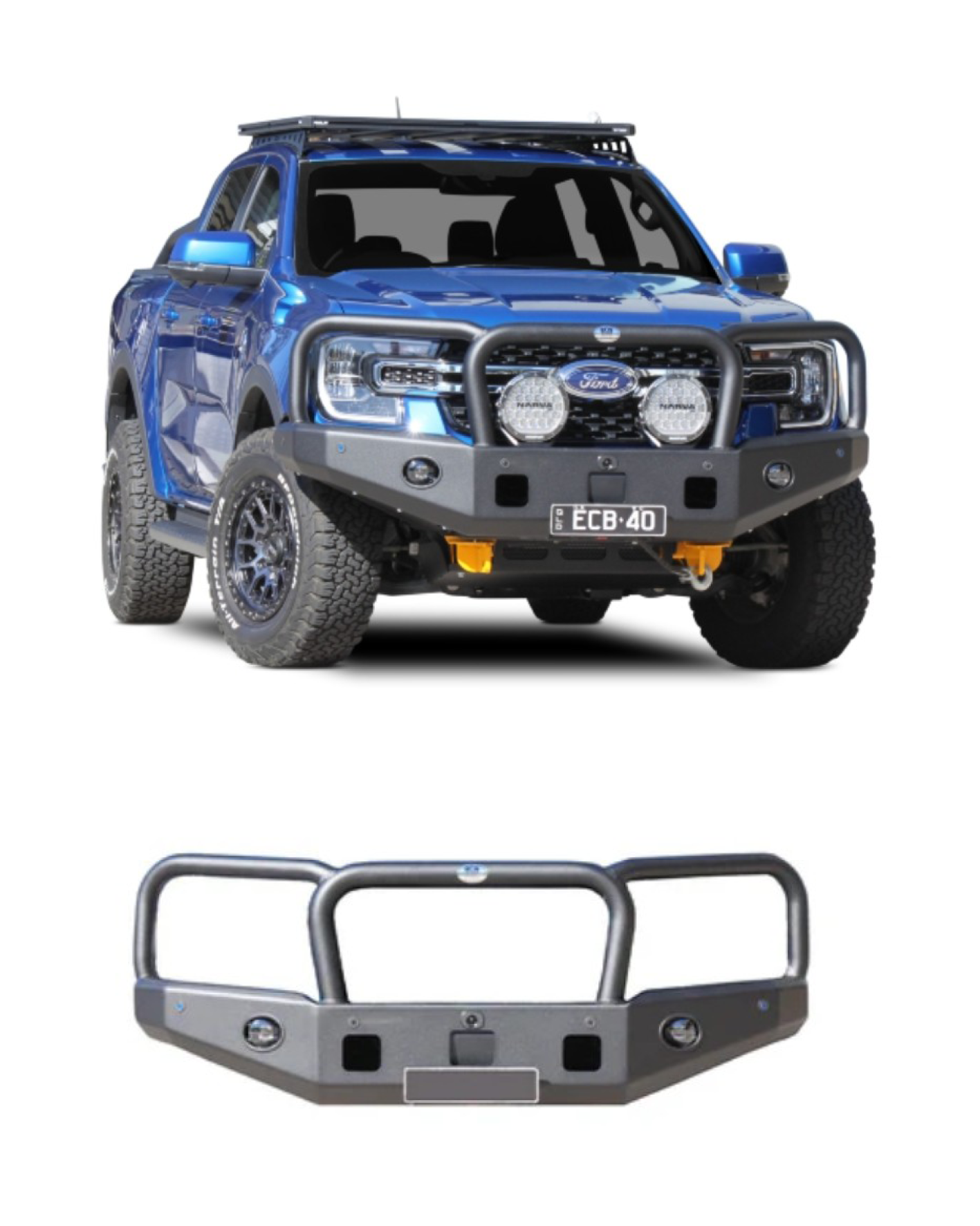

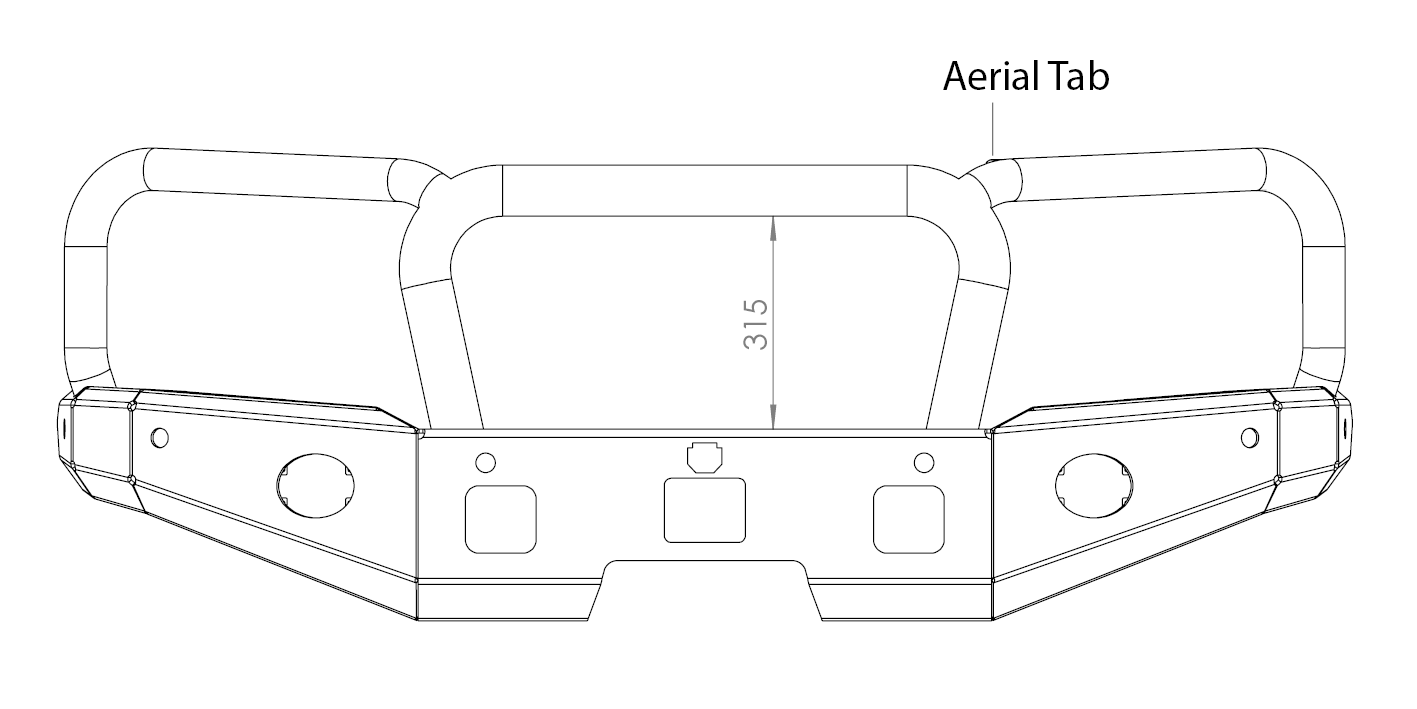

TRIPLE HOOP WINCH BAR
KEY FEATURES

• ADR Compliant
• Airbag Compatible
• Winch Compatible
• Steel Mounting System
• Hi-Tensile, Corrosion Resistant Alloy Tubing
• Adds only 61kg to your vehicle
• Accessory mounting tab
• Spotlight mounting provisions up to 1.75kg each

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

DIMENSIONS & WEIGHTS
Tube Thickness: 76mm x 4.75mm
Distance Added to Vehicle: 120mm
Bar Width: 1938mm
Net Weight Added to Vehicle: 67.5Kg

LIGHTS & ACCESSORIES
Accessory Tabs: 1 Tab - 1.75kg Rated (Passenger Side)

Lighting: Pre-Drilled Mount Positions
Spotlight Height Allowance: 300mm

Centre Hoop Clearance: 210mm
Accessory Tab Distance to Vehicle: 90mm
Max. Spotlight Weight: 1.75kg (per mount position)

AUSTRALIAN MADE

AUSTRALIAN MADE

Established in 1971, ECB utilises over 50 years of experience designing, engineering and manufacturing products in Australia for Australian conditions.

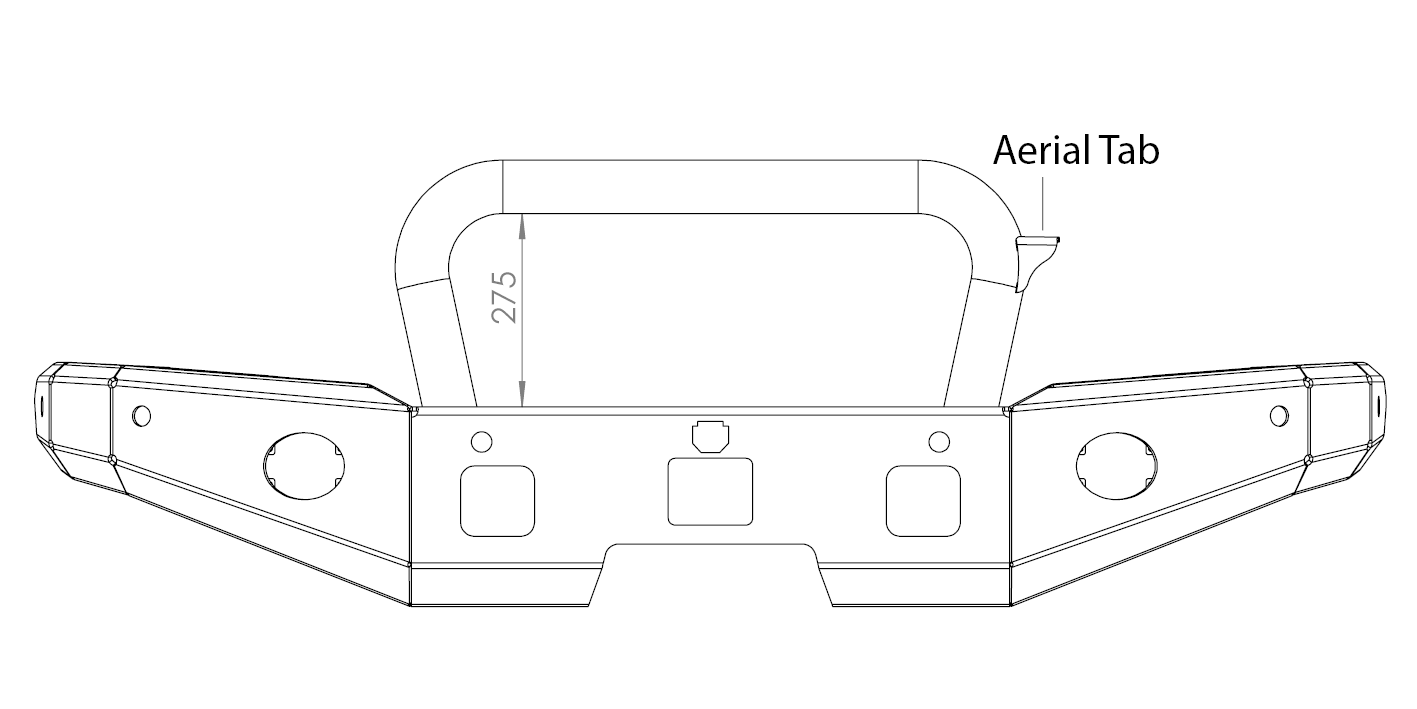

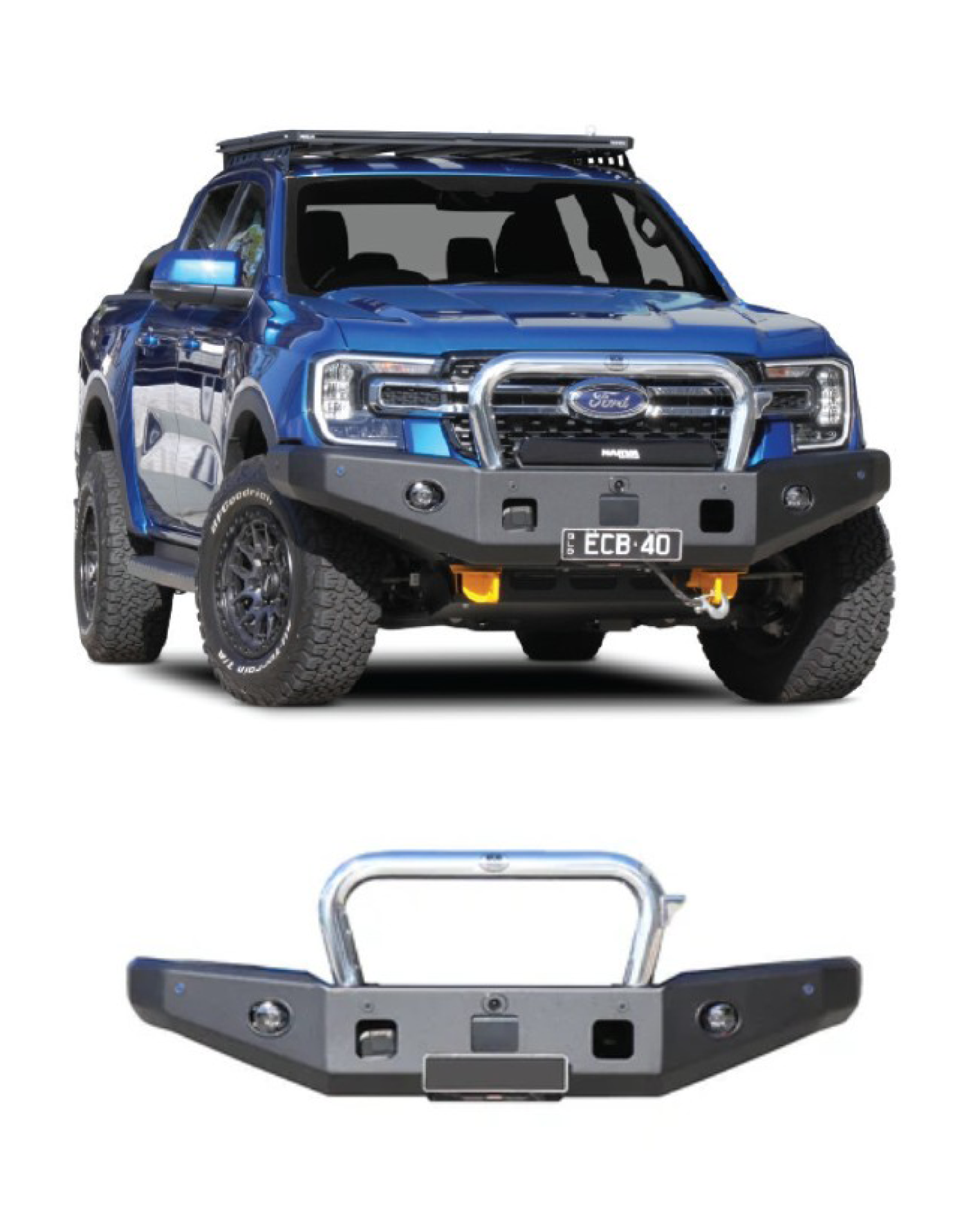

SINGLE HOOP WINCH BAR
KEY FEATURES

• ADR Compliant
• Airbag Compatible
• Winch Compatible
• Steel Mounting System
• Hi-Tensile, Corrosion Resistant Alloy Tubing
• Adds only 58kg to your vehicle with Rated Recovery Points and removable centre hoop
• Accessory mounting tab

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

DIMENSIONS & WEIGHTS
Tube Thickness: 76mm x 4.75mm
Distance Added to Vehicle: 120mm
Bar Width: 1930mm
Net Weight Added to Vehicle: 58Kg

LIGHTS & ACCESSORIES
Accessory Tabs: 1 Tab - 1.75kg Rated (Passenger Side)

Lighting: Pre-Drilled Mount Positions

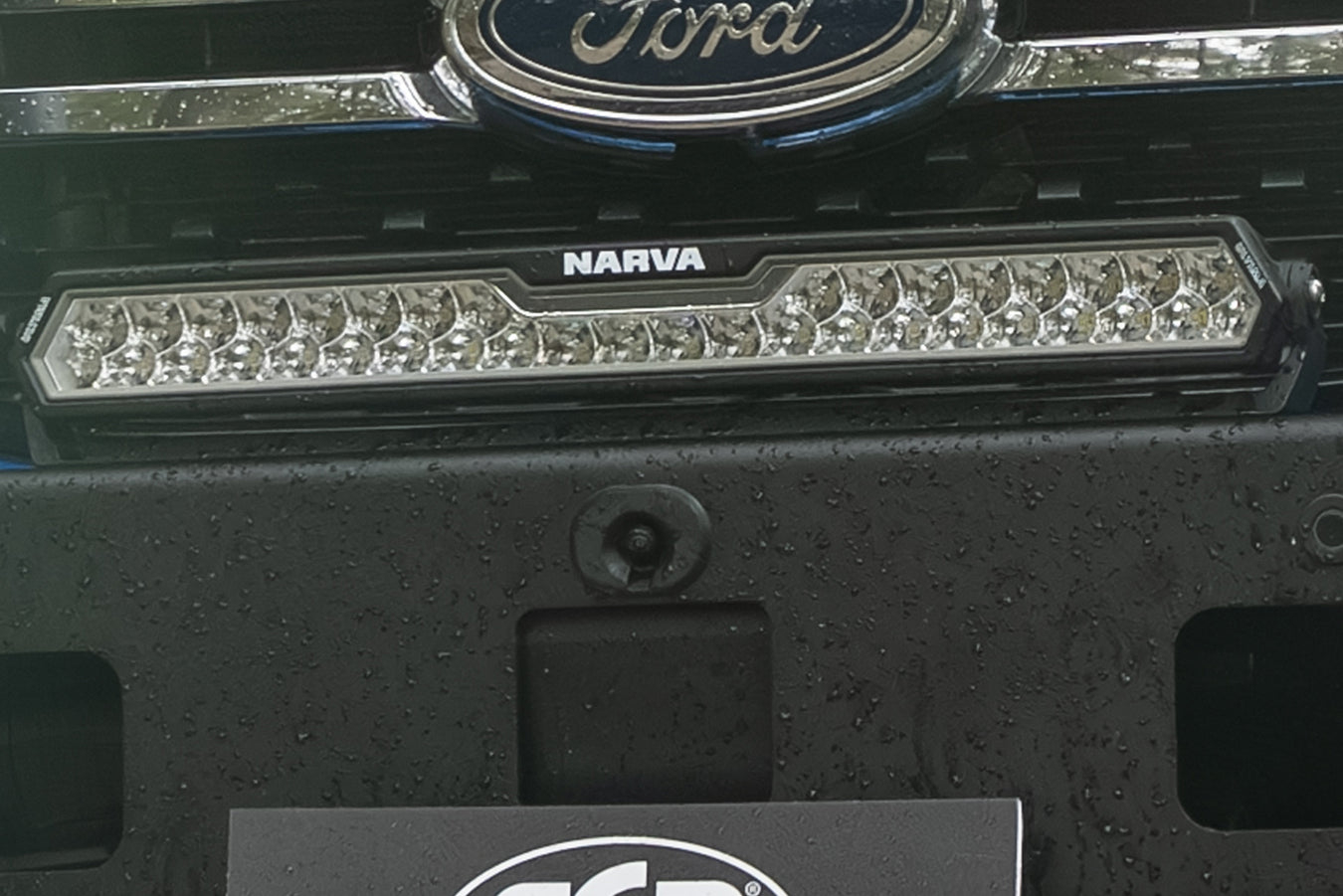

LED Light Bar Recommended under 120mm
Spotlight Height Allowance: 275mm

Centre Hoop Clearance: 210mm
Accessory Tab Distance to Vehicle: 90mm
Max. Spotlight Weight: 1.75kg (per mount position)

AUSTRALIAN MADE

AUSTRALIAN MADE

Established in 1971, ECB utilises over 50 years of experience designing, engineering and manufacturing products in Australia for Australian conditions.

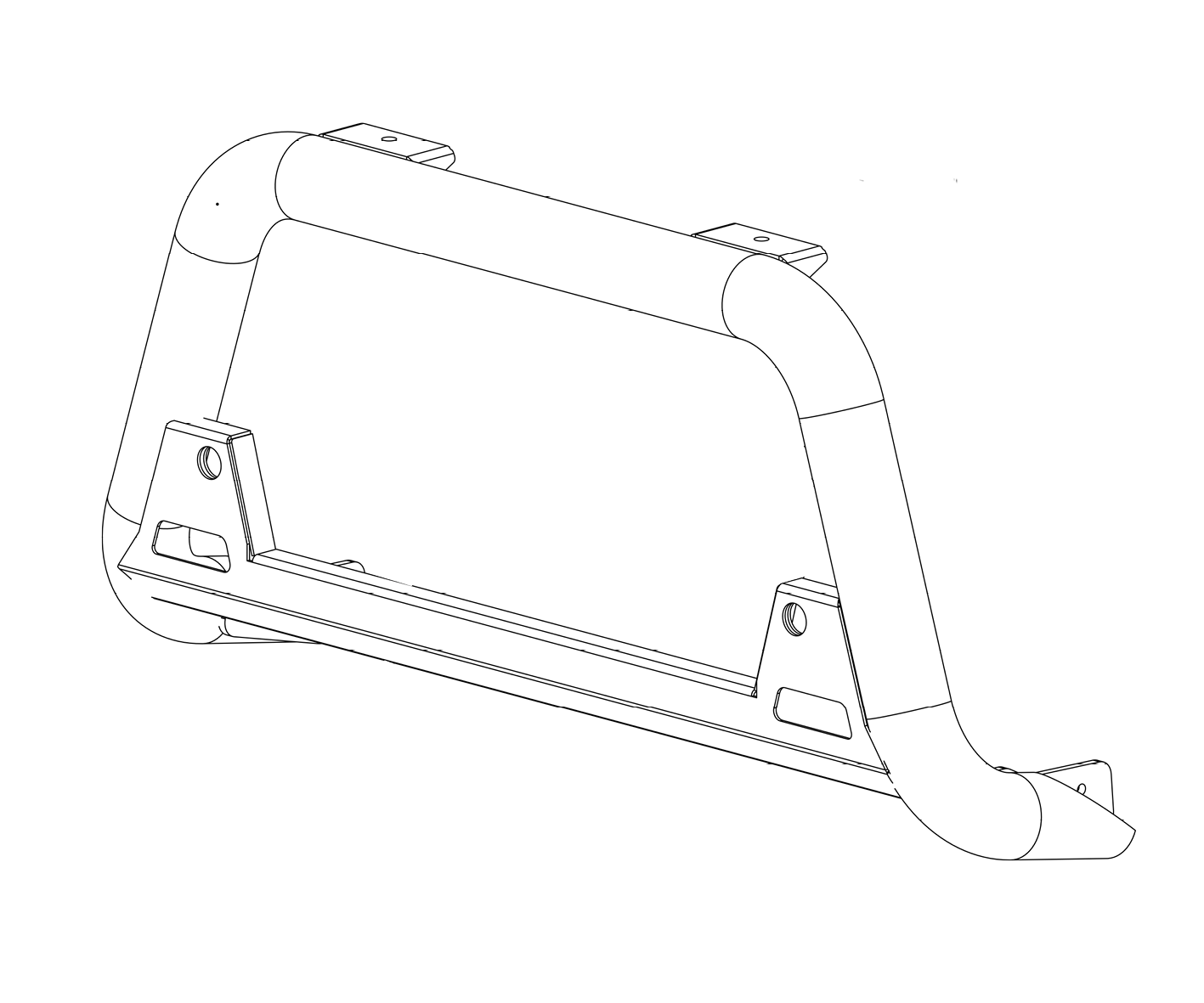

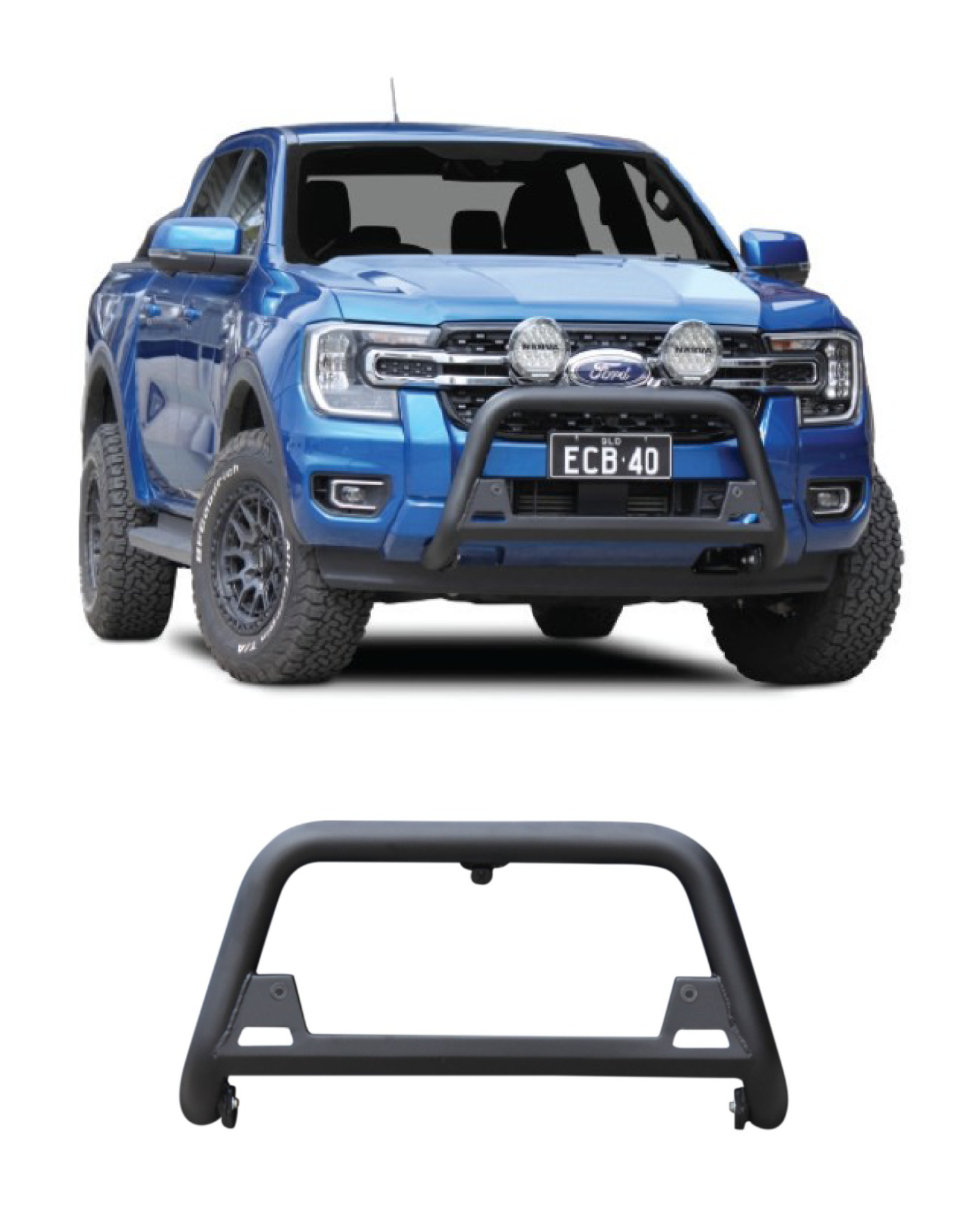

NUDGE BAR
KEY FEATURES

• ADR Compliant
• Airbag Compatible
• Forward facing camera bracket
• Steel Mounting System
• Hi-Tensile, Corrosion Resistant Alloy Tubing
• Adds only 14kg to your vehicle
• Spotlight mounting tabs for lights up to 3.5kg

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

DIMENSIONS & WEIGHTS
Tube Thickness: 76mm x 4.75mm
Distance Added to Vehicle: 150mm
Bar Width: 956mm
Net Weight Added to Vehicle: 14Kg

LIGHTS & ACCESSORIES
Spotlight mounting provisions for up to 3.5kg each

FORD Ranger (05/22 to)
