FORD EVEREST 2022 – CURRENT - Ambiente, Trend and Platinum models

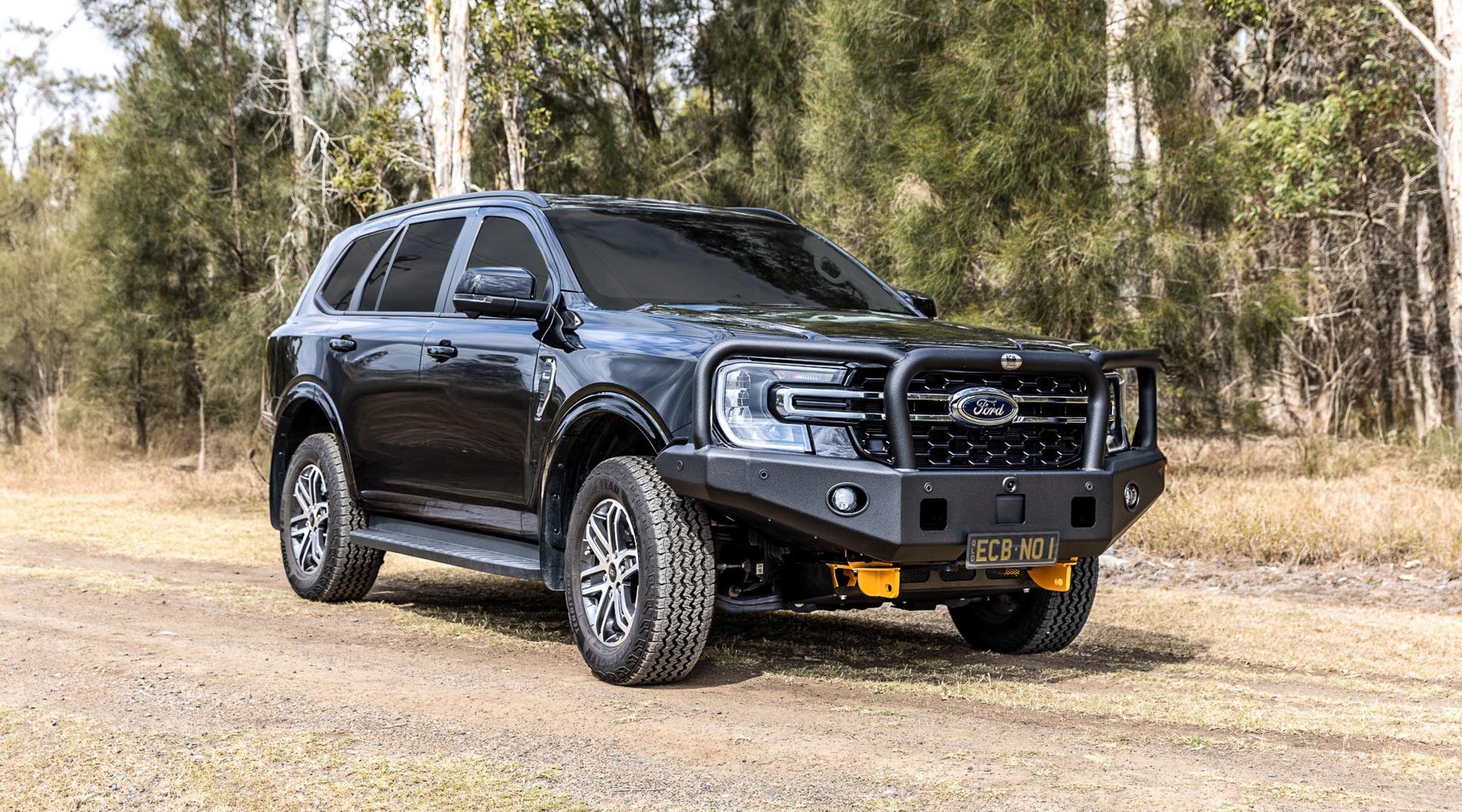

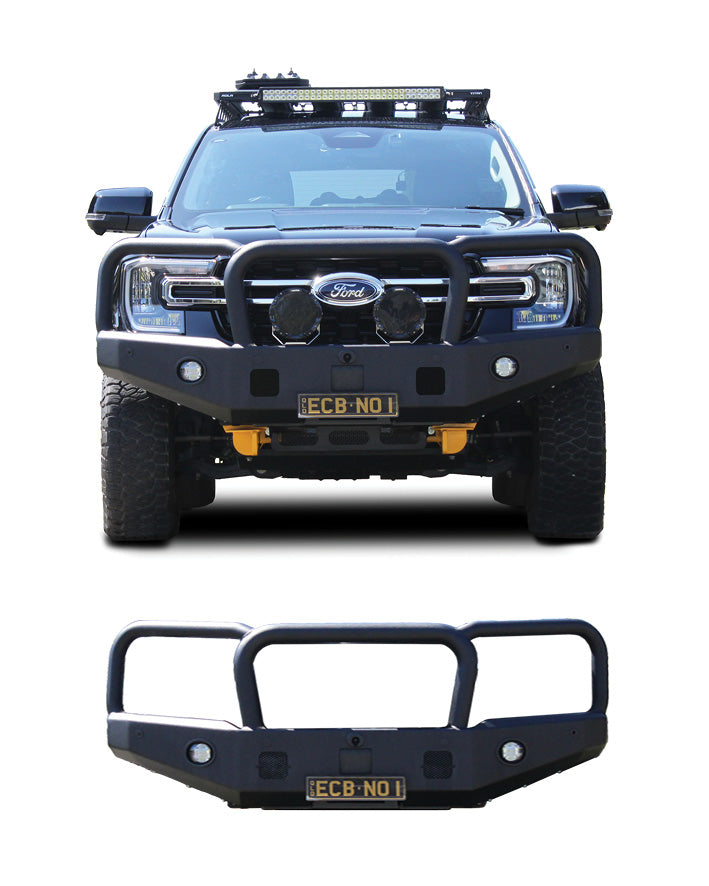

For the ultimate in frontal protection, you won t go past the superior strength, quality and style of ECB s Triple Hoop Alloy Winch Bar. Designed specifically to suit the 2022+ Ford Everest this Triple Hoop Winch Bar accommodates factory safety features, such as the front facing camera, radar and parking sensors.

This Triple Hoop Winch Bar is specifically designed around a Warn VR EVO 12-S Winch and incorporates 2 Rated Recovery Points.

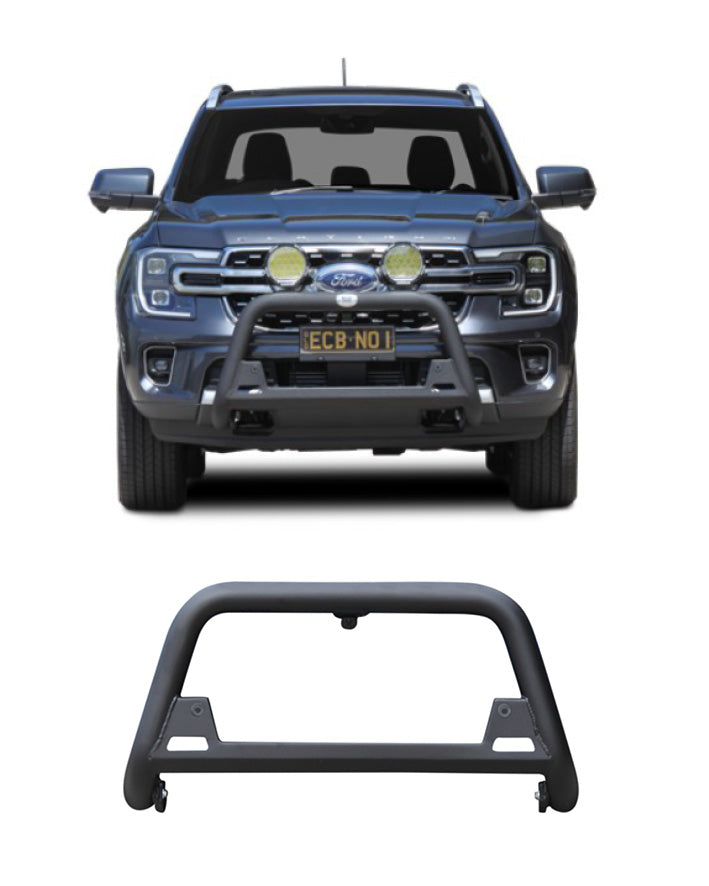

Just like the Triple Hoop Winch Bar, the vehicle’s two centre front parking sensors and forward-facing camera are relocated into the Nudge Bar to retain full functionality of these important safety features and compatible with all ‘Tech Pack’ safety options. This functional design will add to the look of your vehicle.

WHY CHOOSE ECB ALLOY FRONTAL PROTECTION

Alloy Bullbars are made from a lighter weight material than your more traditional steel Bullbar. A lighter Bullbar will reduce the load on your vehicle’s suspension, steering components and chassis. Safety is at the forefront of all ECB products with our engineering and design teams focused on incorporating all the safety features of modern vehicles into our products. All ECB products are ADR compliant and have been tested for Airbag Compatibility.


Made to last, Alloy is naturally resistant to rust and corrosion making them ideal for offroad conditions. With conservative styling and available in powdercoated finish only you can select a Bullbar or Nudge Bar that will complement the styling of the vehicle and accessories you choose to fit.

AUSTRALIAN MADE

AUSTRALIAN MADE

Established in 1971, ECB utilises over 50 years of experience designing, engineering and manufacturing products in Australia for Australian conditions.

KEY FEATURES

  • ADR Compliant
  • Airbag Compatible
  • Winch Compatible
  • Steel Mounting System

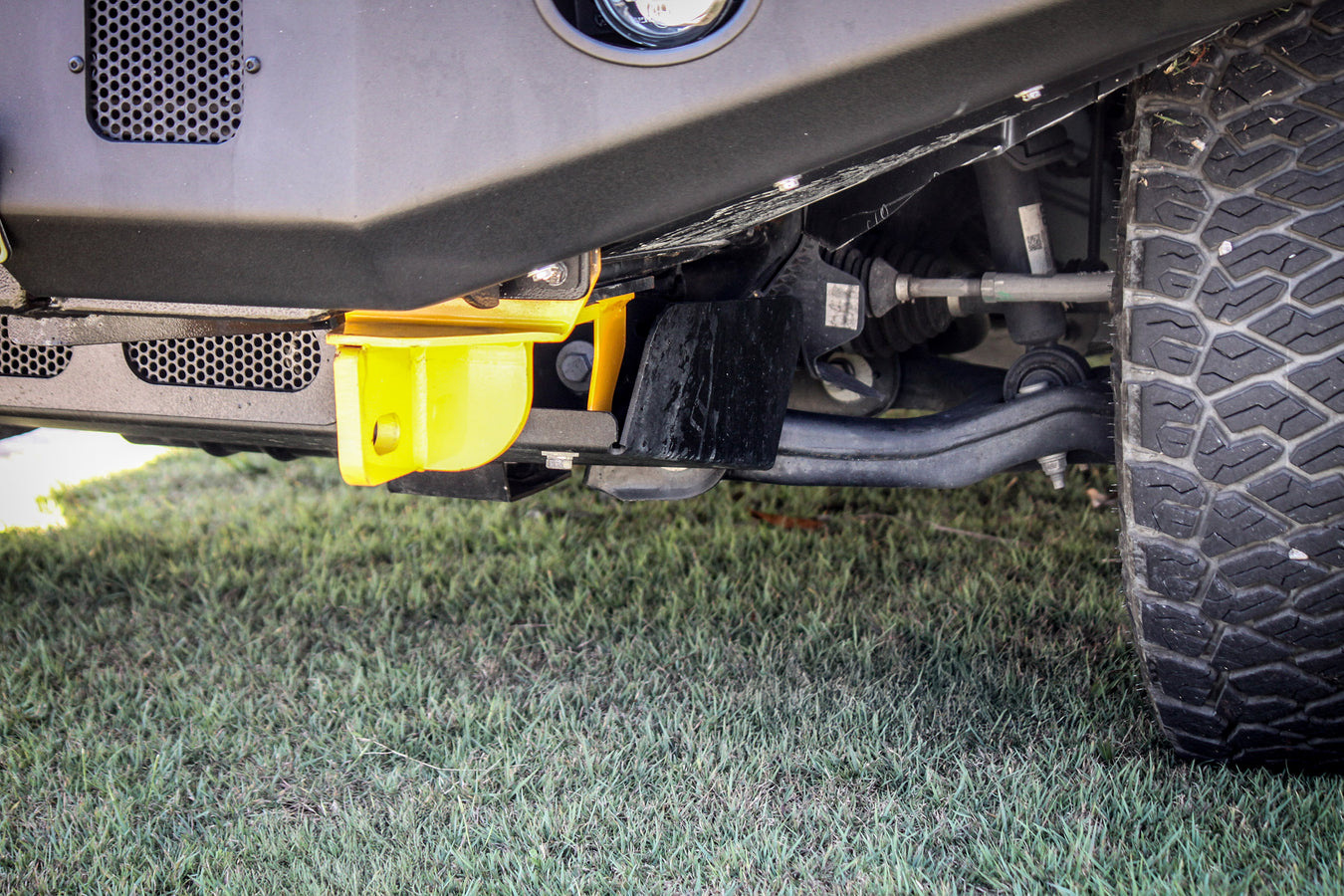

  • Rated recovery points
  • 76mm x 4.75mm centre & 63mm x 4mm shoulder tubes
  • 6mm thick hi-tensile Alloy channel
  • Camera & sonar relocation kit
  • Won’t affect new vehicle warranty
  • Lifetime Warranty
  • Adds 82kg to your vehicle (including rated recovery points)
PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

DIMENSIONS & WEIGHTS
Centre Tube Thickness: 76mm x 4.75mm
Distance Added to Vehicle: 120mm
Bar Width: 1938mm
Net Weight Added to Vehicle: 61kg
82kg added with Rated Recovery Points

LIGHTS & ACCESSORIES
Accessory Tabs: 1 Tab - 3.5kg Rated (Passenger Side)
Spotlight Height Allowance: 315mm
Centre Hoop Clearance: 630mm
Spotlight Tab Distance to Vehicle: N/A
Max. Spotlight Weight: 3.5Kg (per mount position)

WINCH INTEGRATION
This bullbar features a specifically designed steel
winch mounting system, ensuring a strong and
sturdy fit. This bullbar has been designed around
a WARN VR EVO 12-S Winch (Winch not included).

WINCHES TEST FITTED TO THIS BAR
• WARN 12,000lb low mount winch

AUSTRALIAN MADE

AUSTRALIAN MADE

Established in 1971, ECB utilises over 50 years of experience designing, engineering and manufacturing products in Australia for Australian conditions.

NUDGE BAR KEY FEATURES

  • ADR Compliant
  • Airbag Compatible
  • Steel mounting system
  • Corrosion resistant hi-tensile alloy tubing
  • Camera Mounting Bracket
  • Won’t affect new vehicle warranty
  • 76mm x 4.75mm thick tube
  • Spotlight mounting provisions for up to 3.5kg each
  • Adds only 14kg to your vehicle
PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

DIMENSIONS & WEIGHTS
Centre Tube Thickness: 76mm x 4.75mm
Distance Added to Vehicle: 150mm
Bar Width: 956mm
Net Weight Added to Vehicle: 14kg

LIGHTS & ACCESSORIES
Accessory Tabs: N/A
Spotlight Height Allowance: N/A
Centre Hoop Clearance: N/A
Spotlight Tab Distance to Vehicle: 45mm

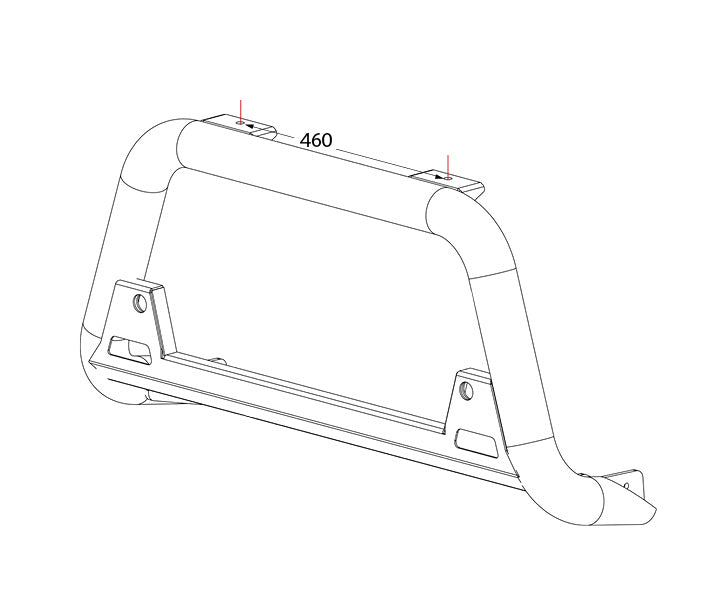

Spotlight Tab Centre to Centre: 460mm
Max. Spotlight Weight: 3.5Kg (per mount position)

FORD EVEREST (06/22 to)
